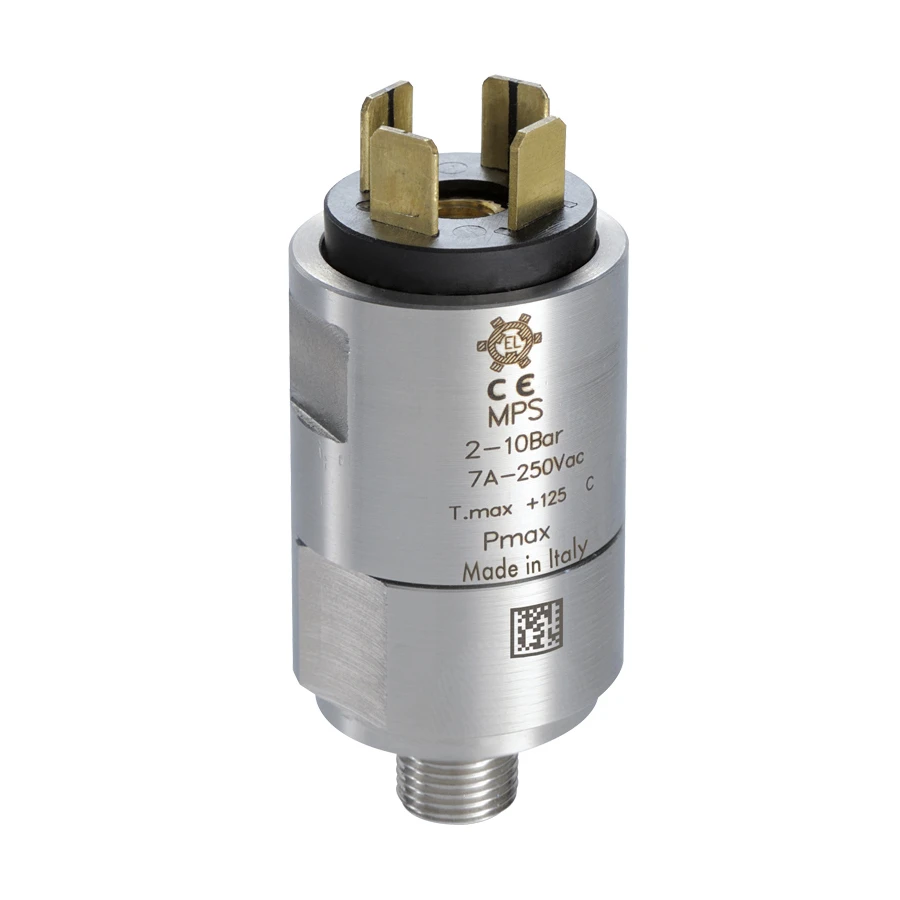

MPS – Modular adjustable pressure controller

Waarom kopen bij Sensors.nl:

SKU: Item-elettrotec-22 Κατηγορίες: Elettrotec, Elettrotec Ετικέτες: Elettrotec, Mechanical Pressure Switches, Πίεση

Βαθμολογία διακόπτη	7 (4) A / 250 Vac
Ηλεκτρική σύνδεση	Faston 6.3 x 0.8 – DIN 43650 – M12 – Deutsch DT04 – 2P
Adjustment range	0.5 – 3 bar – 2 – 12 bar – 10 – 22 bar – 20 – 52 bar – 50 – 80 bar
Max. static pressure	300 bar
Temperature tange	-40 °C +140 °C (according to diaphragm/seal material)
Επικοινωνία	SPDT
Υλικό σώματος	Brass – Stainless steel AISI 316
Diaphragm/ Seal material	Silicone – FKM – HNBR – EPDM
Threads	G 1/8 Taper / parallel-G 1/4 taper and parallel – Other threads on request
Προστασία	IP67
Mechanical life	10⁶ operations at 25 °C
Διαστάσεις	Body Ch 24 – Max. high 62
Επιλογές	Set-point rising and falling – Degreased for oxygen – Tested for applications with gas
